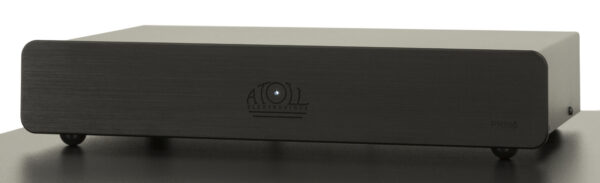

The Phono preamp. PH100 is an external module in a black steel chassis with a 4mm front panel (black or silver).
Power supply is made up of 2 top-of-the-range transformers (one by channel) with very low noise as well as 4 voltage regulators.
The unit is armoured in a metal box in order to preserve all interferences on the audio stages.
The whole circuit uses only discrete components, it does not integrate any link condensator.
The different setup (MM/MC, input impedance) are directly accessible from the back of the cabinet.
Technical Facts:
Input Impedance 47k ou 100k *
Input Capacitors 100 pF ou rien *
Gain MM 40 dB
Gain MC High 47 dB
Gain MC Low 60 dB
THD 0,05 %
Supply 7,2V
SNR at 1kHz 80dB
Crosstalk at 1kHz < -82dB
Linearity (20Hz to 20kHz) < 0.1dB
| Pris: | 3.395,00 kr. |
| Størrelse: | 22cm x 32cm x 6,5cm (LxWxH) |
| Vægt: | 3 kg |
Specifikationer
| Link | https://www.atoll-electronique.com/en/products/phono-preamp/ |
